PCA9685
Component/Hub

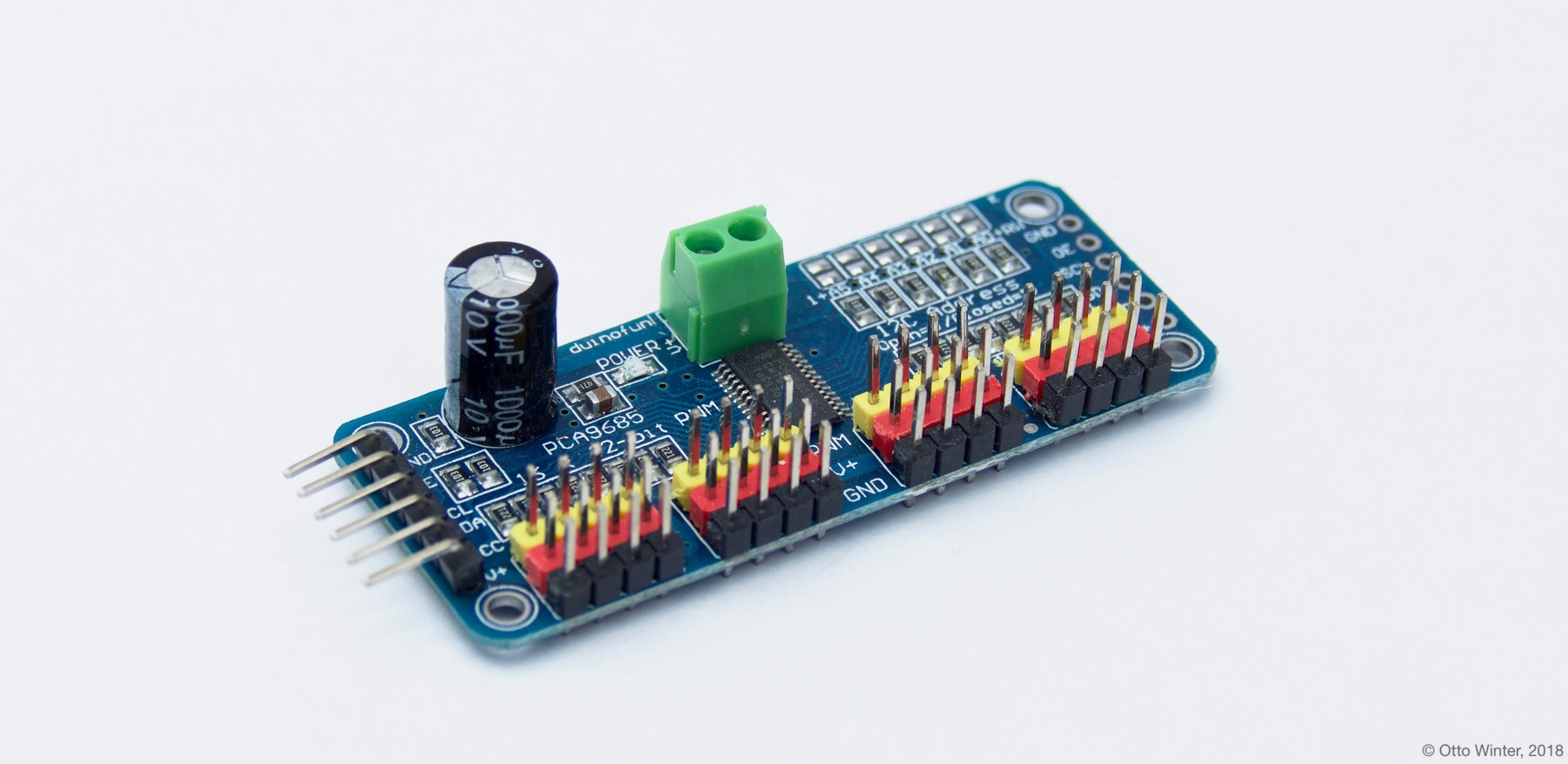

The PCA9685 component represents a PCA9685 12-bit PWM driver (datasheet, adafruit) in ESPHome. It uses I²C Bus for communication.
To use the channels of this components, you first need to setup the
global pca9685 hub and give it an id, and then define the
individual output channels.
# Example configuration entry
pca9685:
- id: pca9685_hub1
frequency: 500
# Individual outputs
output:
- platform: pca9685
pca9685_id: 'pca9685_hub1'
channel: 0# Example configuration entry with external clock enable and clock source from ESP32
pca9685:
- id: pca9685_hub1
external_clock_input: true
# Individual outputs
output:
# generate PWM from ESP32 ledc
- platform: ledc
pin: GPIOXX
id: extclk
min_power: 1
frequency: 40MHz
- platform: pca9685
pca9685_id: 'pca9685_hub1'
channel: 0Configuration variables
frequency (Optional, float): The frequency to let the component drive all PWM outputs at. Must be in range from 24Hz to 1525.88Hz. Defaults to
1000Hz.external_clock_input (Optional, bool): Enable external clock input. PRE_SCALE register will by set to 3. Default to
false.address (Optional, int): The I²C address of the driver. Defaults to
0x40.id (Optional, ID): The id to use for this pca9685 component. Use this if you have multiple PCA9685s connected at the same time
PCA9685 Output
The PCA9685 output component exposes a PCA9685 PWM channel of a global PCA9685 hub as a float output.
# Example configuration entry
pca9685:
- frequency: 500
# Individual outputs
output:
- platform: pca9685
id: 'pca9685_output1'
channel: 0Configuration variables
id (Required, ID): The id to use for this output component.
channel (Required, int): Choose the channel of the PCA9685 of this output component. Must be in range from 0 to 15.
pca9685_id (Optional, ID): Manually specify the ID of the PCA9685 hub. Use this if you have multiple PCA9685s you want to use at the same time.
All other options from Output.
Examples
This output can be used for different PWM functions. E.g. output for light, fan etc.
pca9685:
frequency: 500
output:
- platform: pca9685
channel: 0
id: pwm01
light:
- platform: monochromatic
name: 'main light'
output: pwm01
